Qsep Cartridge
search
  • Qsep Cartridge
  • Qsep Cartridge

Quantitative Standard Sensitivity S2 Kit

Reference: C105201Q

This kit is designed to quantify and determine the size of NGS libraries and PCR fragments, using external standards and markers as reference, on Qsep1 and Qsep100 systems.

Features :

  • Sizing and quantification range : 20 bp ~ 1,500 bp
  • Input concentration range : 0.2 ng/μl ~ 50 ng/μl
  • Resolution : 4 ~ 10 bp
help
Get information
CHF 500.00
Tax excluded
Packaging: 2 x 200 rxns
An account is required to purchase this item.

A ready-to-use pack containing all the necessary components to run the samples within minutes. The running gel is preloaded into the cartridge. The capillary is part of the cartridge, thus by replacing an empty cartridge with a fresh new one the capillary is replaced as well. Therefore no expensive extra cost is needed for the capillary maintenance.

Box content :

  • S2 Cartridges
  • Quantitative Alignment Marker 20 bp – 1.5 kb
  • Size Marker 15 bp – 622 bp
  • Separation Buffer
  • Sample Dilution Buffer
  • Mineral Oil
  • Buffer Tray


Best sample size range 20 bp ~ 1,500 bp
Input concentration range 0.2 ng/μl ~ 50 ng/μl
LOD 0.1 ng/μl
Resolution 4 ~ 10 bp
Minimum sample volume 2 μl
DNA sizing precision 2% CV
DNA quantification precision 10% CV
Analysis time (per sample) 4.5 minutes

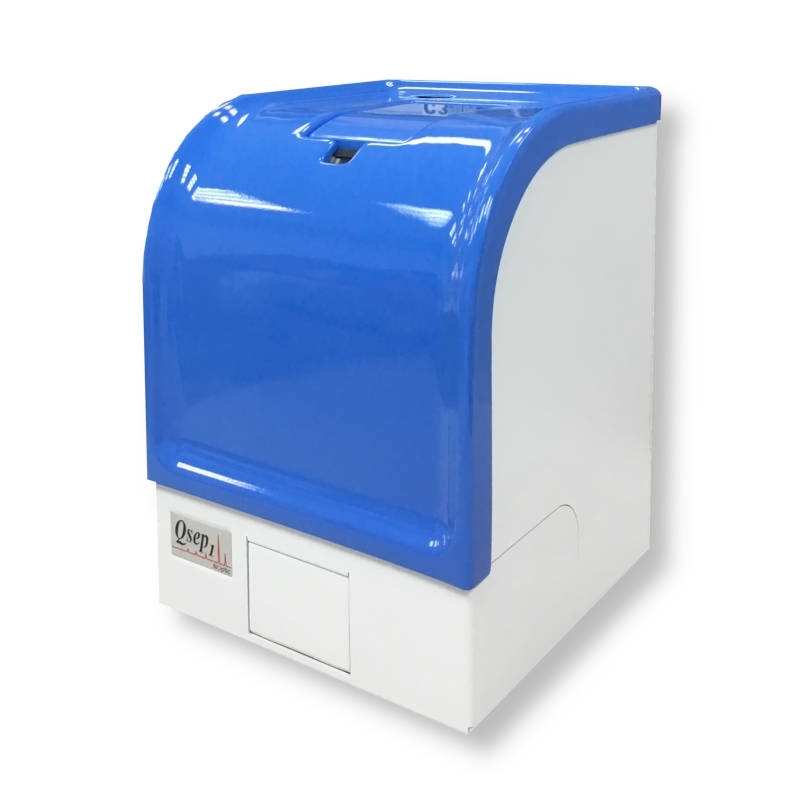

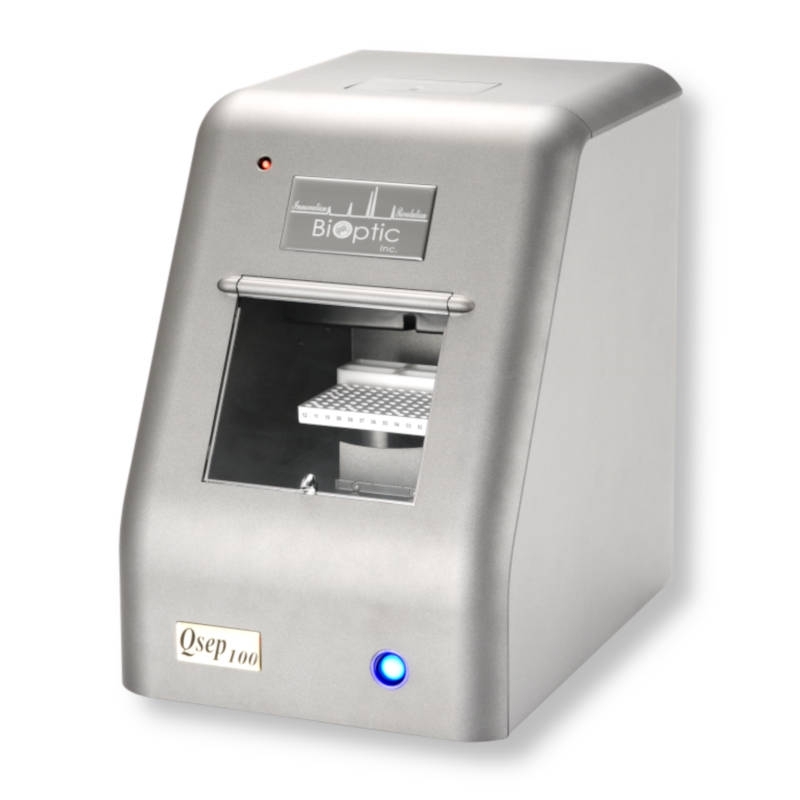

Intended use Qsep1 and Qsep100
Storage Room temperature

Cartridge Unpacking Guide

Download (1.83MB)

User Guide

Download (541.58KB)
