MagPurix 12 N.E.O. CE IVD Nucleic Acid Extraction System

Reference: ZP010NEO

Fully automated, highly innovative CE IVD system for quick sample purification from a wide range of biological specimens. Incorporating advanced technologies, from magnetic bead separation technology to polygon reaction chambers, the MagPurix® 12 N.E.O. ensures quick and top quality results.

Features :

  • Easy protocol setup with barcode scan
  • Magnetic bead technology
  • Easy-to-Use interface with sample tracking
  • 1 - 12 samples simultaneously
  • Full bi-directional LIS connection
help
Get information

MagPurix 12 N.E.O. is the latest state-of-the-art clinical sample preparation system designed for Molecular Diagnostics. This fully-automated platform ensures rapid and efficient extraction of high-quality nucleic acids from various sample types. With the MagPurix 12 N.E.O., scientists and laboratories can now achieve reliable and significant results while streaming their workflow. By minimizing hands-on time, reducing handling errors, and ensuring purification consistency, this advanced system provides a simplified and confident experience for researchers.

Advanced magnetic bead extraction technology

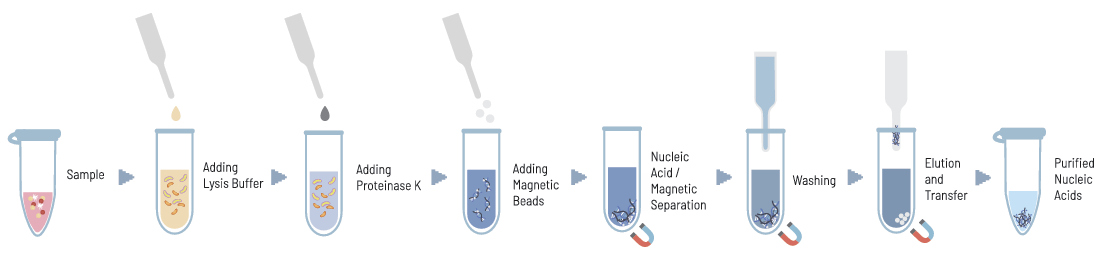

The cutting-edge MagPurix technology utilizes proprietary magnetic beads for an efficient extraction of nucleic acids from various samples. This platform offers a remarkable level of automation, allowing users to achieve a truly hands-free experience from sample to results. The purification process encompasses essential steps such as lysis, binding, washing, and elution, ensuring optimal extraction and purification of nucleic acids. The system uses a patented liquid handling system with which researchers can obtain reliable results with ease.

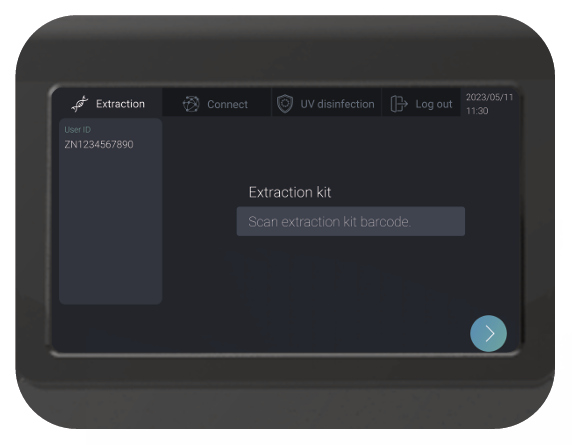

Easy display

A simple & clean user-centric interface for easy navigation and set-up that keeps you up-to-date along the whole process.

MagPurix NEO display.jpg

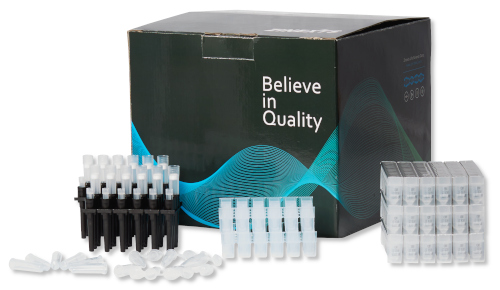

Purification kits

A wide range of ready-to-use extraction kits is available for fast, high-purity and high-yield nucleic acid purification from a wide range of sample types for molecular diagnostics. Click the button below to see what's available.


MagPurix Extraction Kits

Cat. No. ZP010NEO
Technology Liquid handling based on 4D-catch nano magnetic particles
Automation level Fully automated
Sample throughput 1 - 12 samples simultaneously
Reagent assortment 20 pre-packed kits for any kind of sample type and subsequent uses
Extraction time 20 - 75 minutes depending on the protocol
Sample volume range 100 - 2,000 μl, customisable (15,000 μl with pre-capture)
Elution volume range 50 - 300 μl, customisable
Input Barcode-scanner or manually by key touchpad
Display 7" inch touch pad
Weight 50 kg
Dimensions (W x D x H)
 43.0 x 56.0 x 54.0 cm
Electrical 110-240V 50/60 Hz
Operation tracking Automatic video recording of the entire extraction process
Sample tracking Yes
LIS connectivity
 Bi-directional
